Tape Measurer (Digital)

Technological innovation! A more practical combination of tape measure and laser range finder.

DTAPE Laser Tape Measure Laser Range Finder

DT10 series is a laser tape measurer that integrates trditional tape with laser measurer.

• Model Number : DTAPE DT10-B3
• Purchased on Amazon

Appearance

1. Measure
• Short press for a single measurement
• Long press for continuous measurement
2. Menu : Short press to switch measurement
3. Set :
• Short press to change the reference
• Long press to change the measuring units
4. LCD Display
5. Tape Lock: Press to control the stetch of the tape
6. Laser Receiving Lens
7. Laser Emitter
8. Tape / Magnetic hook
9. Clip
10. Power ON / OFF
    • Long press to turn ON / OFFF
    • Short press to return to last state
11. Micro USB Port

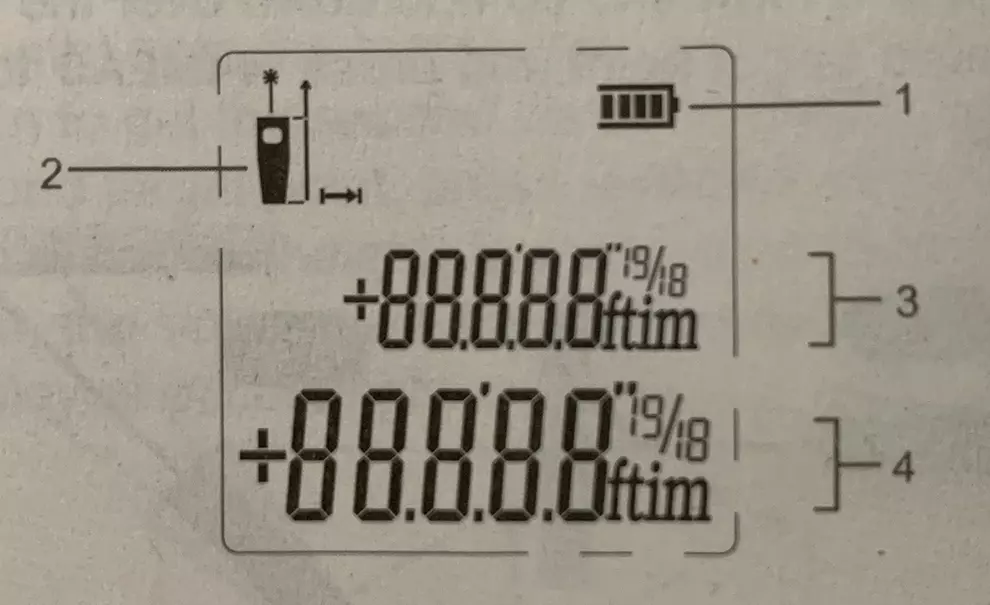

LCD Display Icon

1. Battery indicator
2. Starting point-Rear
3. Memory
4. Current data

Specifications

• Range: 40mm
• Accuracy: ±(2mm+5x10^-5D)
• Reference: Front/Rear
• Measuring Units: m/ft/in/ft+in
• Laser class: Class 2
• Laser type: 630-670nm, <1mW
• Operating temperature: 0-40^o C
• Storage temperature: -10-60^o C
• 1.4-inch black on white easy reading reverse display
• Laser auto shut-off: 30s
• Auto power off: 180s
• 5m professional tape measurer
• Uprightness up to 1.8 meters
• Strong magnetic hook
• Tape lock design to easily control the tape
• Operated all by one-button,
• Built-in laser moder
• Powered by built-in lithium rechargeable battery

Laser Measurer

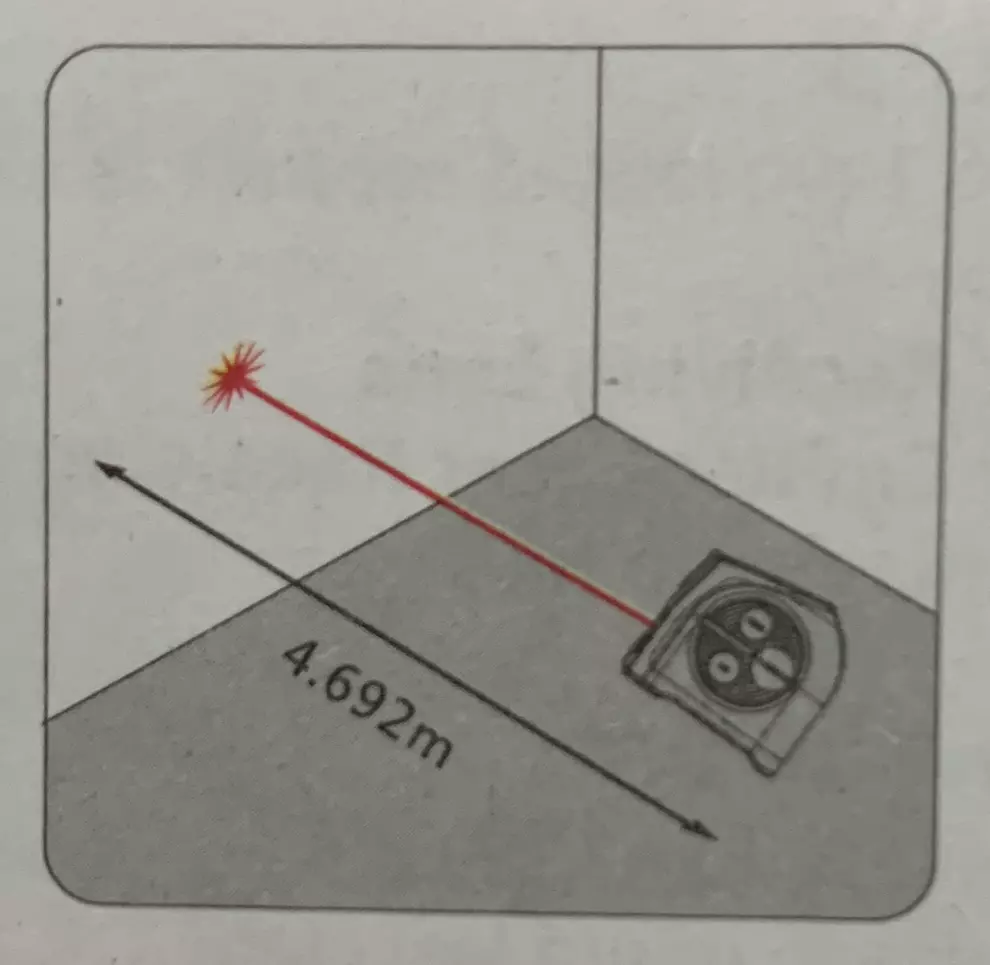

Single Measurement

• The device will enter Single Measurement mode when powered ON.
• Press <<MEAS after aiming at target to get result on the bottom of the screen.
• Press <<MEAS again to measure new data.

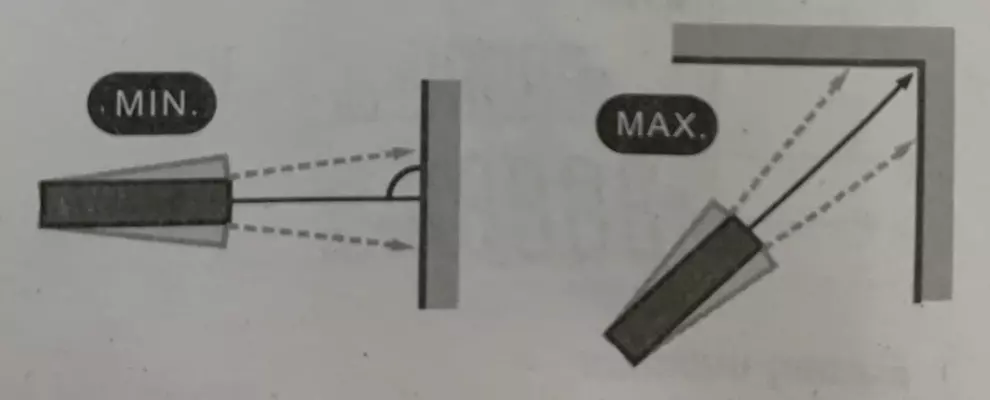

Continuous Measurement

• Long press <<MEAS to switch to Continuous Measurement mode
• Sweep slowly the laser back and forth and up and down over the desired target point and press <<MEAS to stop

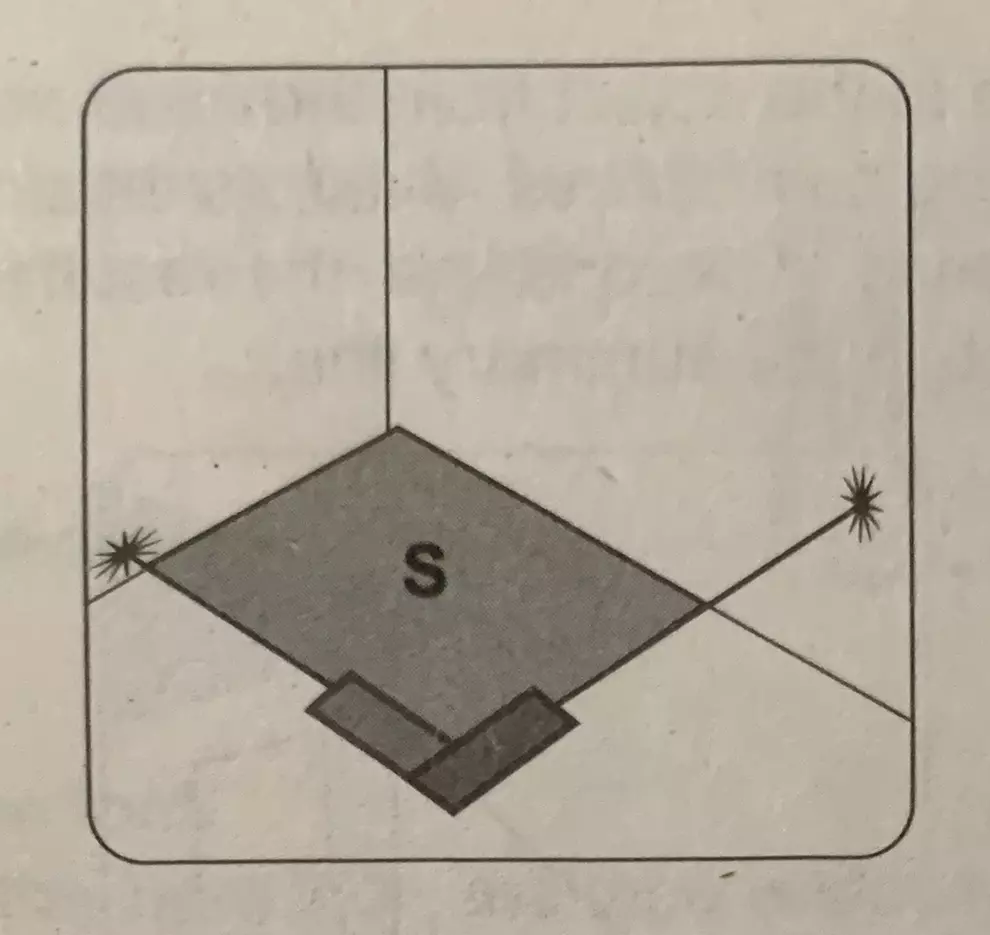

Area Measurement

• Long press MENU until the flashing logo displays the Area Measurement mode
• Length: Press <<MEAS to get fthe first distance from the target point
• Width: Press <<MEAS to again to get the second distance from the second target point
• The area will be calculated and displayed accordingly

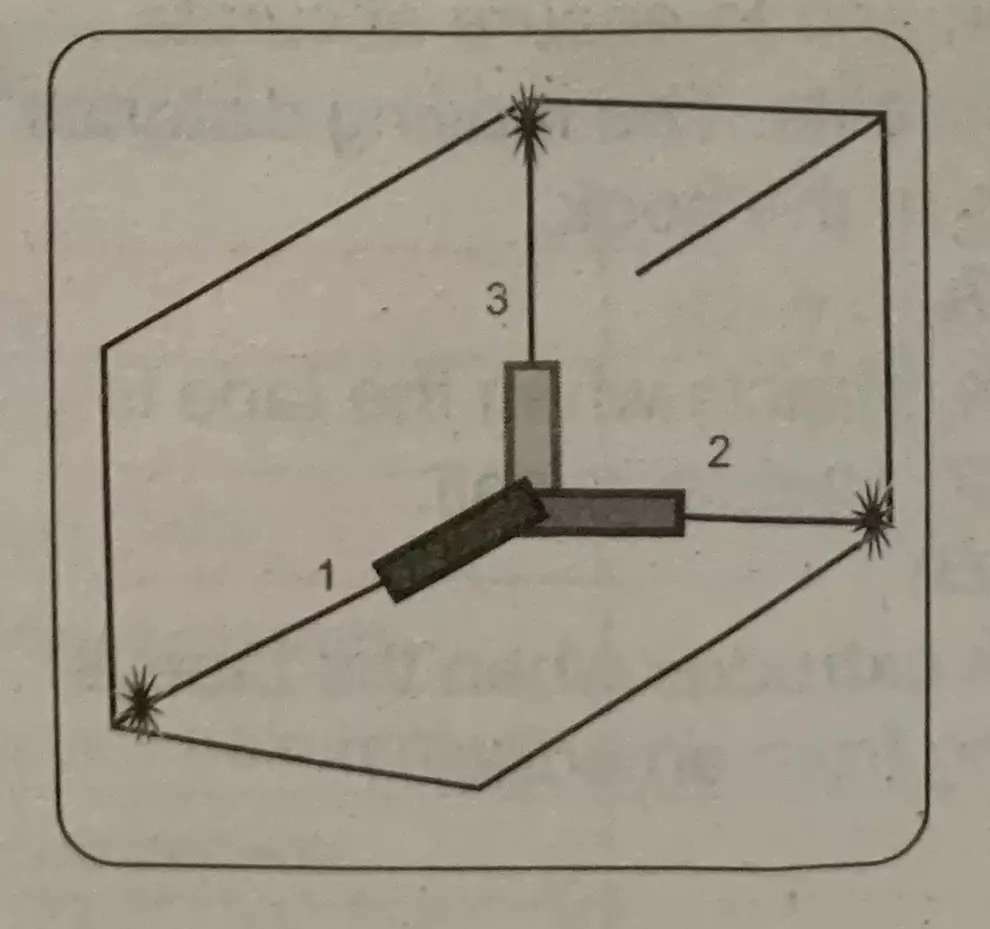

Volume Measurement

• Short press MENU until the flashing logo displays the Volument Measurement mode
• Length: Press <<MEAS to get fthe first distance from the target point
• Width: Press <<MEAS to again to get the second distance from the second target point
• Height: Press <<MEAS to again to get the third distance from the third target point
• The volume will be calculated and displayed accordingly

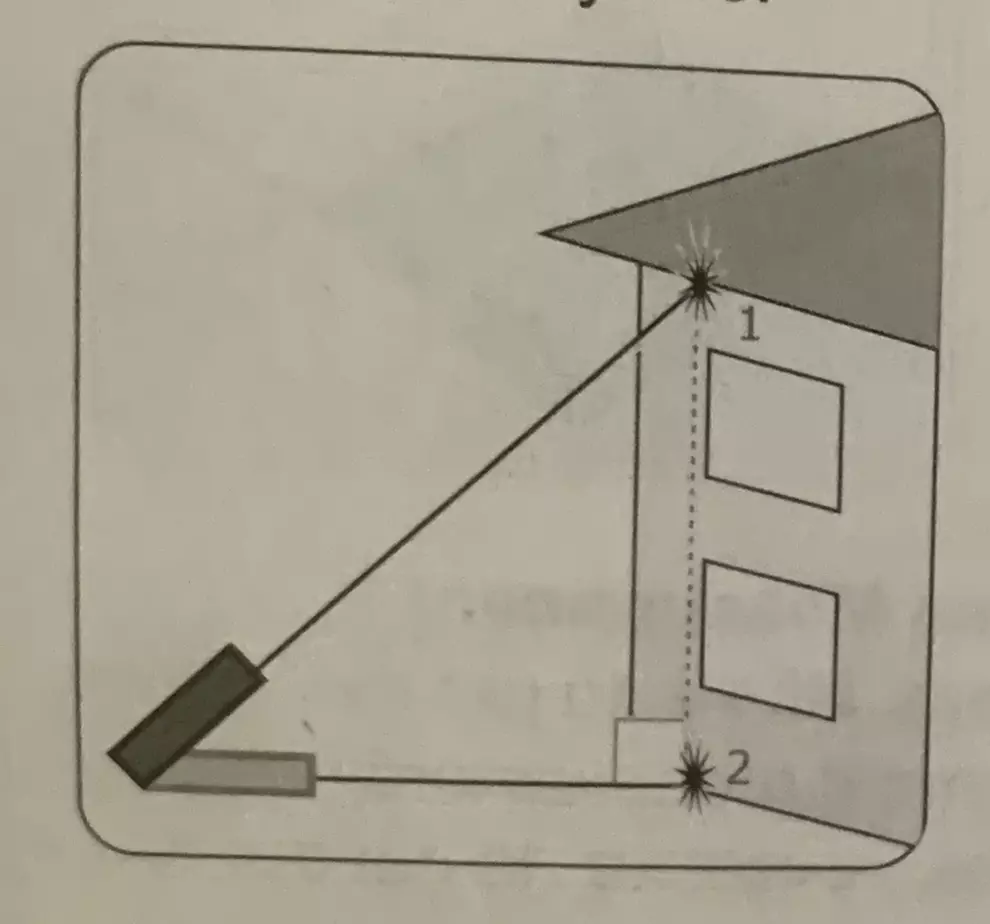

Pythagoras (2-Point)

• Short press MENU until the flashing logo display the Pythagoras (2-point) measurement mode
• First line: press <<MEAS to get fthe first distance
• Second line: press <<MEAS to get the second distance
• The volume will be calculated and displayed accordingly

Hook Usage and Tape Lock

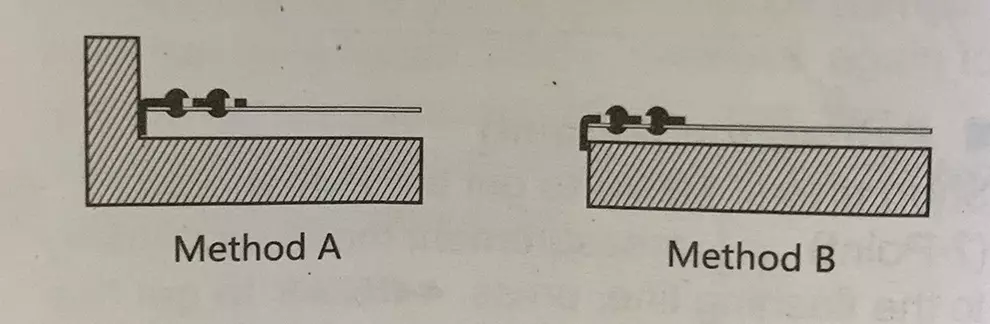

Usage of Hook: The hook is movable, used for true zero correction and to ensure accurate measurements. The moving distance is the thickness of the hook :

• Method A : The hook retracts when the tape is measuring against a wall
• Method B : The hook extrudes when the tape is measuring from an edge

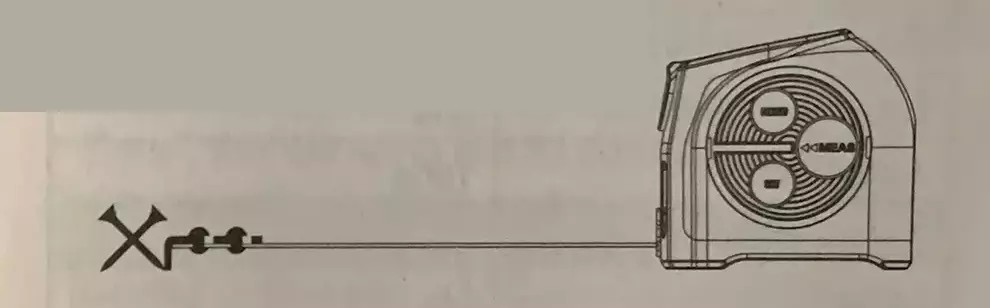

Magnetic Hook

It can be absorbed on metallic materials to measure length

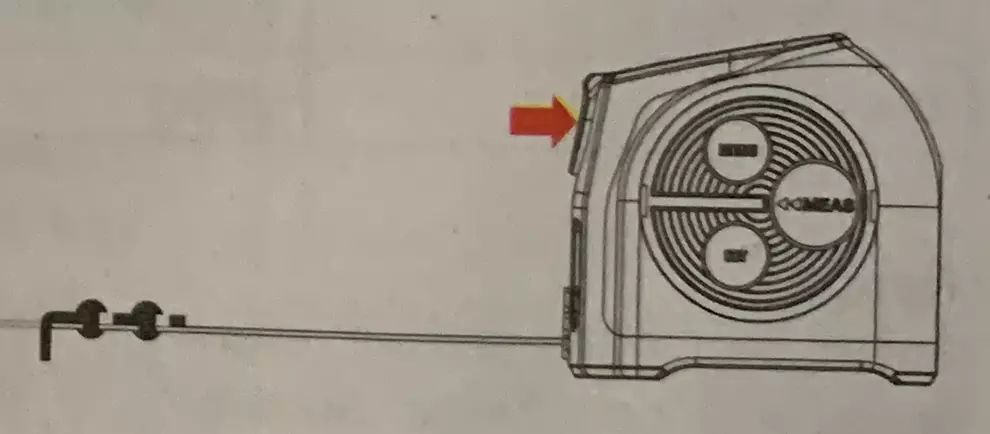

Tape Lock

Press the lock for the tape to slowly retract. Releae the button to stop the retraction.

Error Codes

• 204 : Calculation error. Repeat the procedure.
• 220 : Low battery
• 255 : Received signal too weak or measurement time too long. Improve the reflective surface (use target plate, white paper).
• 256 : Received signal is too strong. Improve the reflective surface (use target plate, or don't aim at strong light).
• 261 : Out of measuring range.
• 500 : Hardware error. Switch on/off the device.
